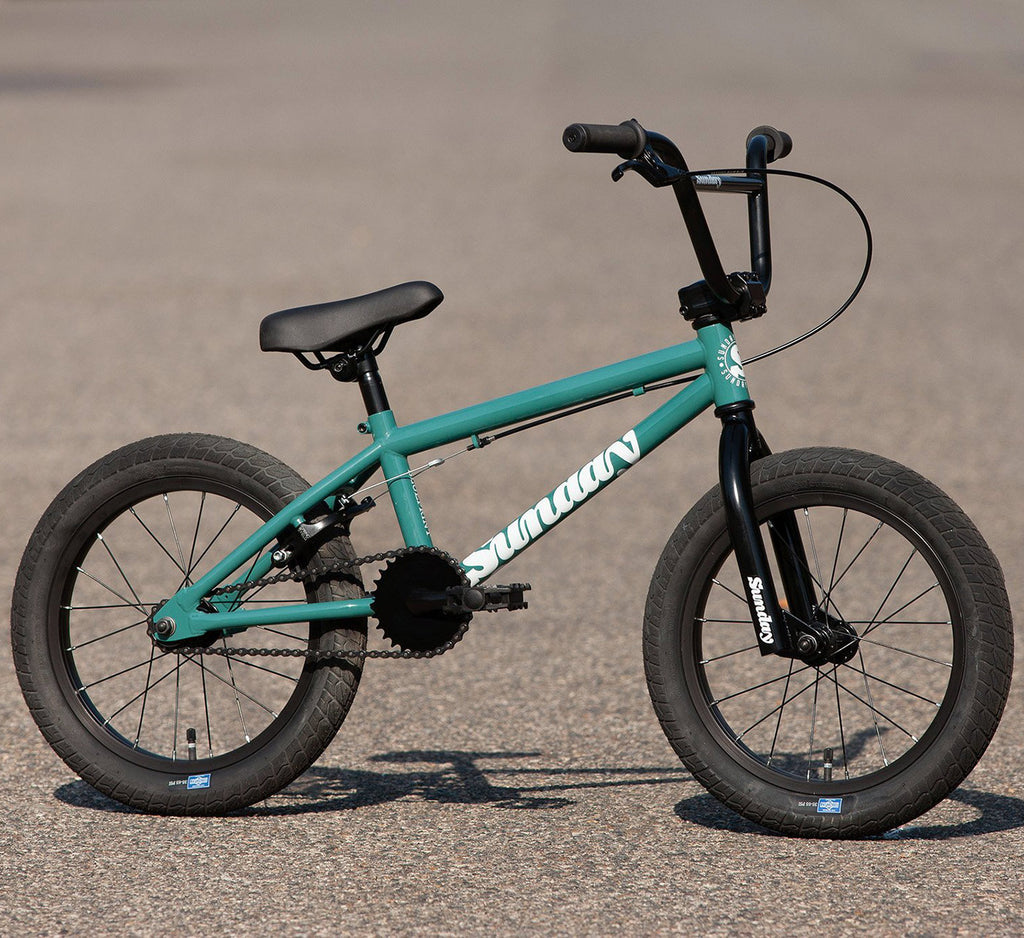

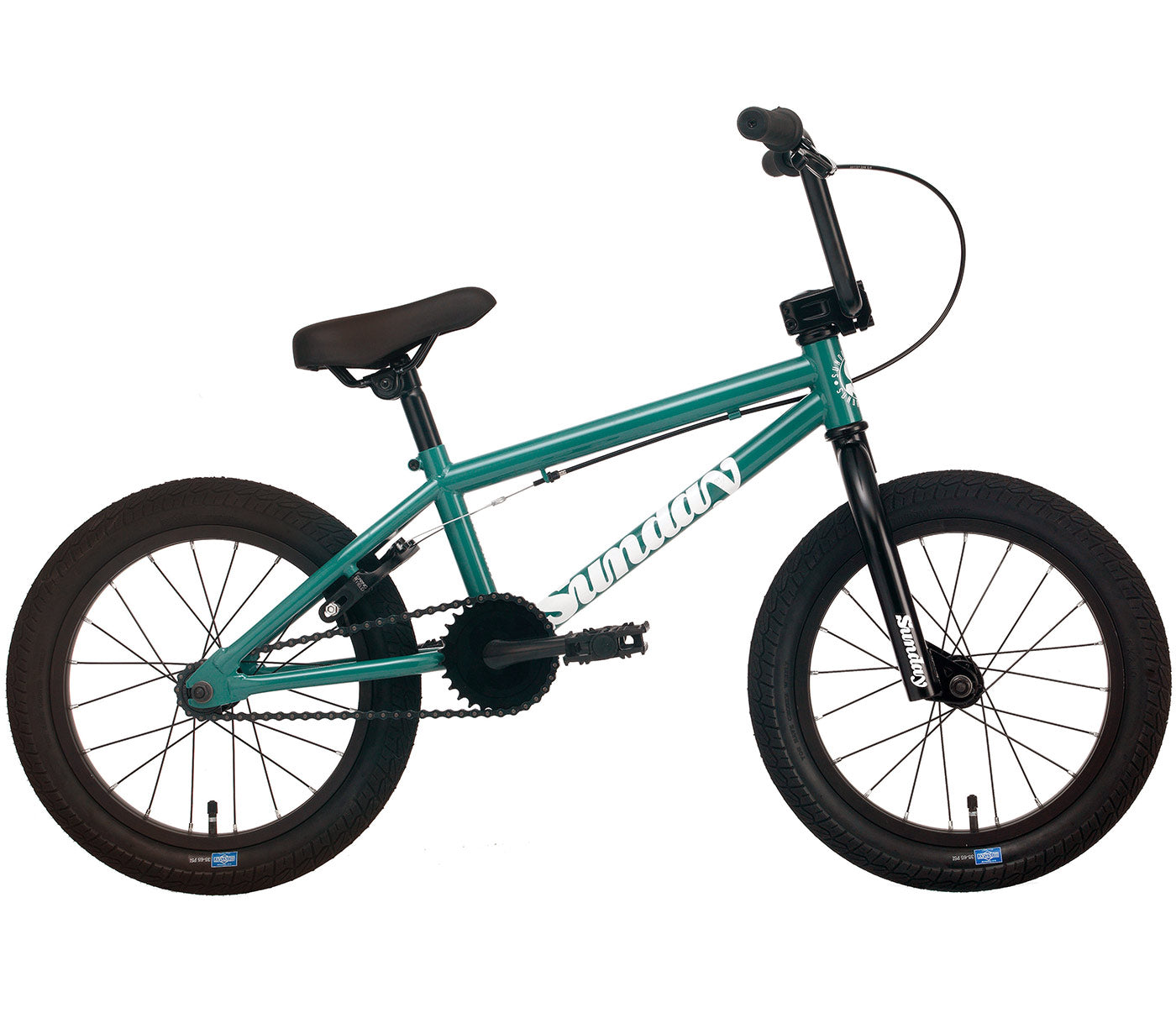

Sunday Blueprint 16" BMX Bike (2022)
Please use BMX bike sizing as a guide only. Size guide does not take into account skill level or riding preference, so you may need to get a longer or shorter top tube length to suit your style of riding.
Junior (smaller than 20" wheels) BMX bikes sizing
| Rider Age | Rider Height | Bike Size |
| 1.5 - 4 years | 80 - 110cm | Balance Bike |
| 3 - 6 years | 95 - 115cm | 12" wheels |
| 4 - 8 years | 100 - 130cm | 14" wheels |
| 5 - 9 years | 110 - 140cm | 16" wheels |
| 7 - 12 years | 120 - 155cm | 18" wheels |
20" wheeled BMX bikes sizing
All bikes below have 20" wheels, which makes the top tube length the determining factor for optimum sizing.
| Rider Height | Bike Categories | Top Tube Length |
| 135 - 150cm | Youth BMX bike | 18.5" - 20.25" |
| 145 - 165cm | Youth BMX bike | 19.8" - 20.5" |
| 155 - 170cm | 20.25" - 20.75" | |
| 165 - 180cm | Adult BMX bike | 20.5" - 21" |
|
175cm + |
Adult BMX bike |
Larger than 20" wheeled BMX bikes sizing
BMX bikes with 22" - 27.5" wheels suit riders of many sizes, but can be more practical for taller riders.
| Rider Height | Wheel Size |
| 170cm + | 22" and up |
SUNDAY BLUEPRINT 16" 2022 BIKE KEY FEATURES:
- Extra short 15.5" top tube frame suits a smaller rider 5 - 8 years old
- Very short 115mm cranks will suit smaller legs better!
- 28/13 gearing is easier to pedal than a normal BMX (great for learning)

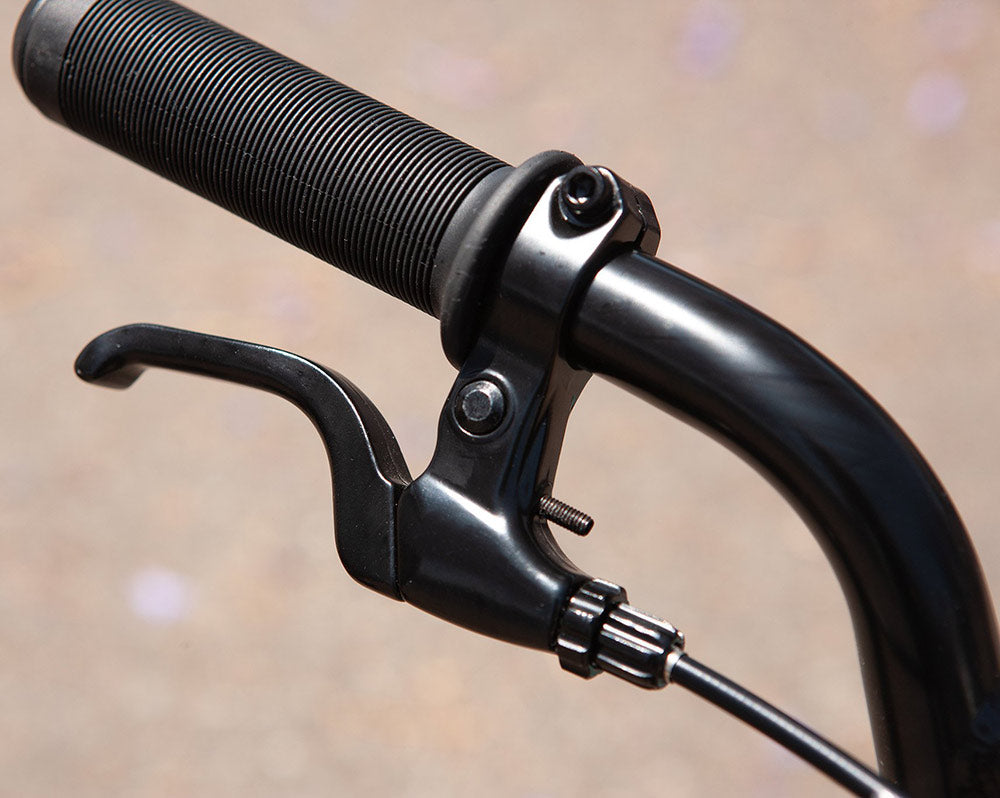

- Rear hand brake with no back pedal brakes means an easier learning curve
- Durable, quality Sunday parts
Getting your first BMX is a momentous occasion and the Sunday Blueprint 16" bike provides an awesome entry to the BMX world!
Designed with proportional geometry that makes it respond just like a regular 20″ BMX bike.
The little ones will have zero problems getting rad with the big kids on the Sunday Blueprint 16.
GEOMETRY:
- TOP TUBE LENGTH: 15.5"
- HEAD ANGLE: 74.5°
- SEAT ANGLE: 71°
- CHAINSTAY: 10.625 - 10.875”
- BB HEIGHT: 9.25"
- STANDOVER: 6.9"
SPECS:
- FRAME: Blueprint 16 Hi-Ten Frame
- FORK: Blueprint 16" Fork

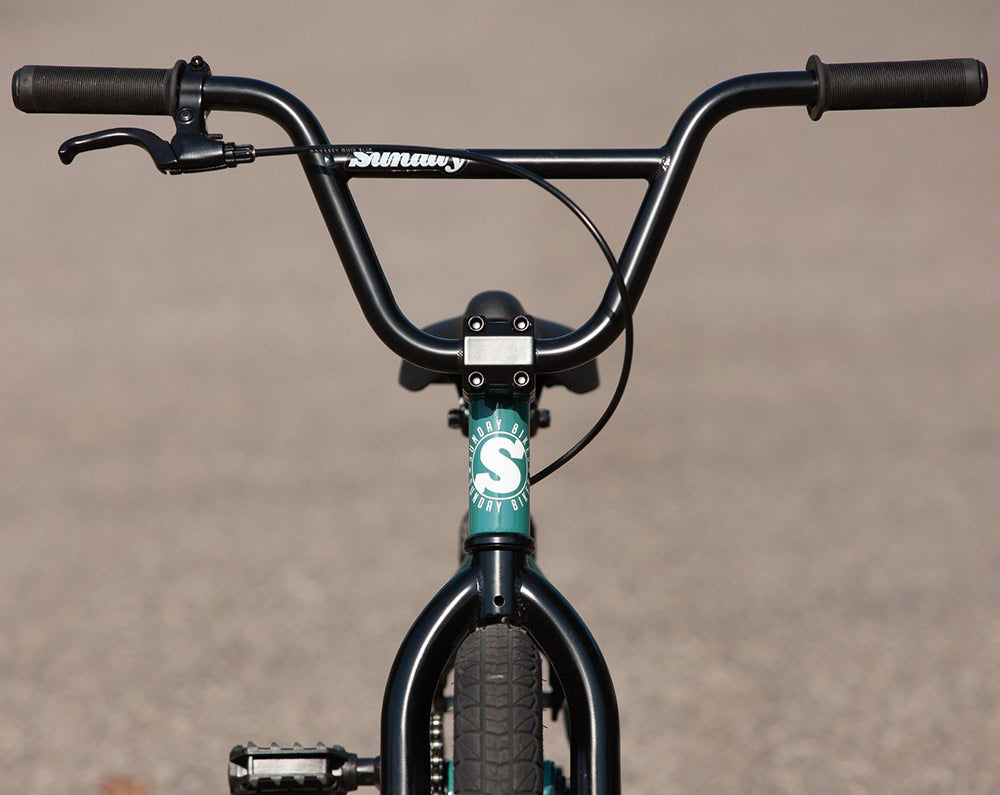

- HANDLEBAR: 6.75" x 23", 12° Back, 1° Up
- STEM: Sunday Front Load 40mm
- HEADSET: Traditional 1-1/8"
- HEADSET CAP: Alloy Cap w/ Star Nut
- GRIPS: Junior
- SEAT: Junior Seat
- SEAT POST: 1" Steel
- SEAT CLAMP: Integrated
- SPROCKET: Sunday S Logo, 28T, Steel
- CRANKS: 115mm, 1-piece
- BB PARTS: 19mm American
- PEDALS: Wellgo Junior PC Pedals
- RIMS: 16" Rim, 20H

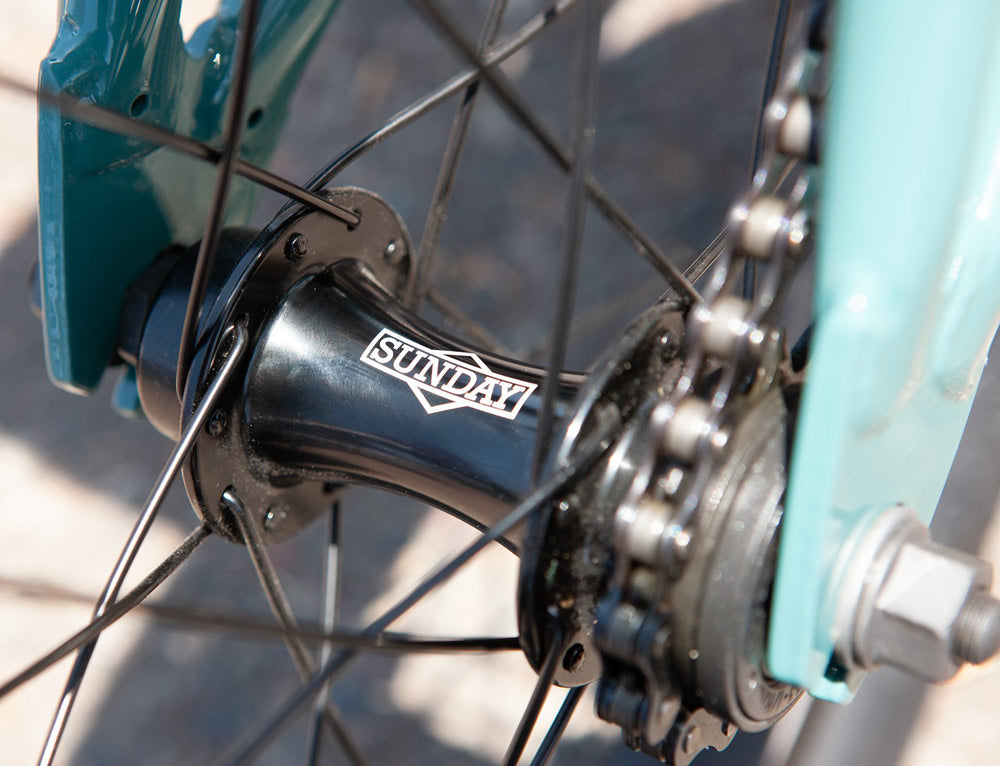

- FRONT HUB: Sunday, Low-Flange, Looseball, 20H
- REAR HUB: Unsealed 20H, Odyssey 13T Freewheel
- SPOKES: Steel Black
- TIRES: Sunday Current 16 x 2.1" (F & R)
- CHAIN: KMC Z410
- Weight: 9.85kg
All BMX bikes 20 inch wheel* and smaller are shipped in a bike box at a flat rate of $35 Australia wide.
22 inch - 29 inch wheel bikes will be shipped with a big bike shipping rate of $89 Australia wide.
Bikes are shipped using Aramex, Couriers Please, TNT or Australia Post.
Some assembly is required once received and can be done using a basic BMX tool kit and bike pump.
We provide an optional pre-service bike build to
dramatically cut down on the assembly and prolong the life of your bike, which
can be added separately before checkout.
*20 inch suspension bikes will incur the big bike shipping rate.
